Our Products

We manufacture and supply a vast range of precision engineered hydraulic presses used in varied number of industrial applicaons.

HYDRAULIC INDUSTRIAL GOODS LIFT

ROPE TYPE 1 : Side indirect acng suspension with wire ropes with one piston for regular loads and long travels
[Max. 6 Floor]

ROPE TYPE 2 : Two side indirect acng suspension with wire ropes with two piston for large loads and long travels [Max. 6 Floor]



LOAD
CAR INSIDE
'A x'B'
LIFT SHAFT
One Side Open 'P' x 'Q'
LIFT SHAFT
Two Side Open 'P,' x 'Q'
ENTRANCE  'C'
MACHINE ROOM
'X' x 'Y'
Kg
Width x Length
Width x Length
Width x Length
Width
Width x Length
500
1100 x 1200
1600 x 1700
1780 x 1560
900
3000 x 3000
7500
1300 x 1500
1800 x 2000
1980 x 1860
1000
3000 x 3000
1000
1400 x 1800
1900 x 2300
2100 x 2160
1100
3000 x 3000
1500
1700 x 2000
2500 x 2300
2400 x 2360
1350
3000 x 3000
2000
1700 x 2500
2500 x 2800
2400 x 2860
1350
3000 x 3000
2500
2000 x 2500
2800 x 2800
2750 x 2860
1500
3000 x 3000
3000
2000 x 3000
2800 x 3300
2800 x 3360
1500
4000 x 3000
4000
2500 x 3000
3300 x 3300
3300 x 3360
1700
4000 x 3000
5000
2500 x 3600
3300 x 3900
3300 x 3360
1700
4000 x 3000


HYDRAULIC PASSENGER LIFT DESIGN

HOLE TYPE 1 : Direct suspension. The simplest soluon for any load, with a simple or split piston [Max. 6 Floor].



LOAD
KG
NO OF PASSENGERS
ENTRANCES
CAR DIMENSION (MM)
CLEAR OPENING (MM)
MIN SHAFT DIMENSIONS (M)
A
B
PL
C
D
350
4
1
800
1200
750
1330
1550
450
6
1
950
1300
800-900
1450-1550
1650
450
6
1
1000
1250
800-900
1500-1600
1600
480
6
1
1000
1300
800-900
1500-1600
1650
480
6
2
950
1300
800-900
1450-1550
1800
480
6
2
1000
1250
800-900
1500-1600
1750
500
6
2
1000
1300
800-900
1500-1600
1800
525
7
2
1000
1300
800-900
630
8
1
1100
1400
800-900
1600
1750
630
8
2
1100
1400
800-900
1600
1900

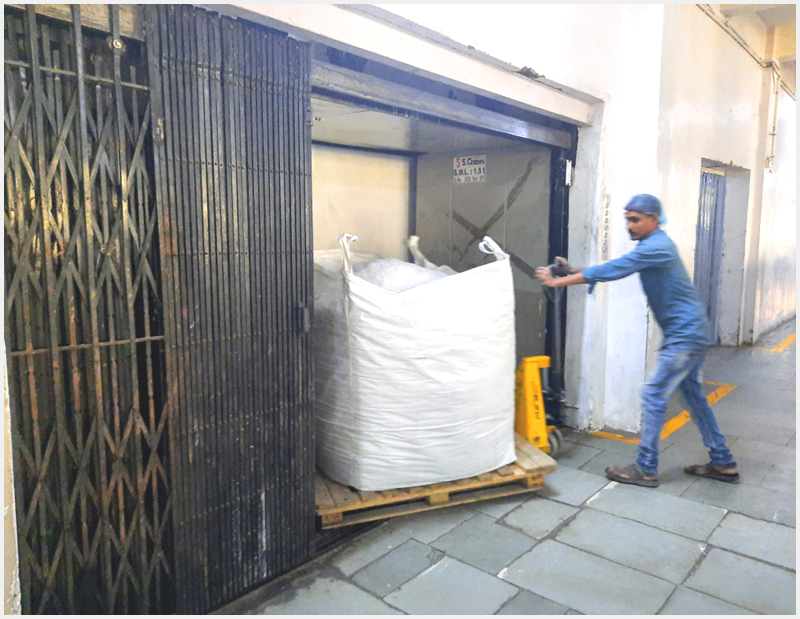

Goods Lift

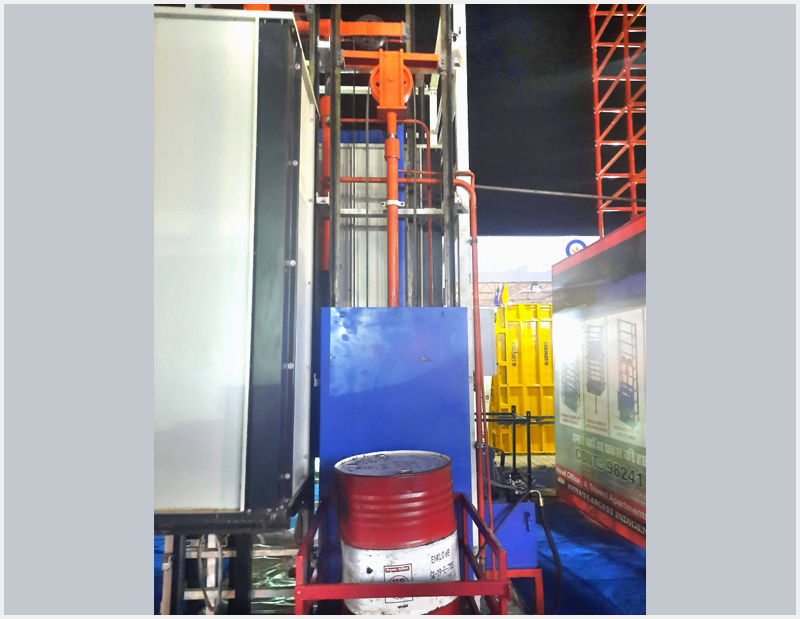

Hydraulic Lift Single Cylinder

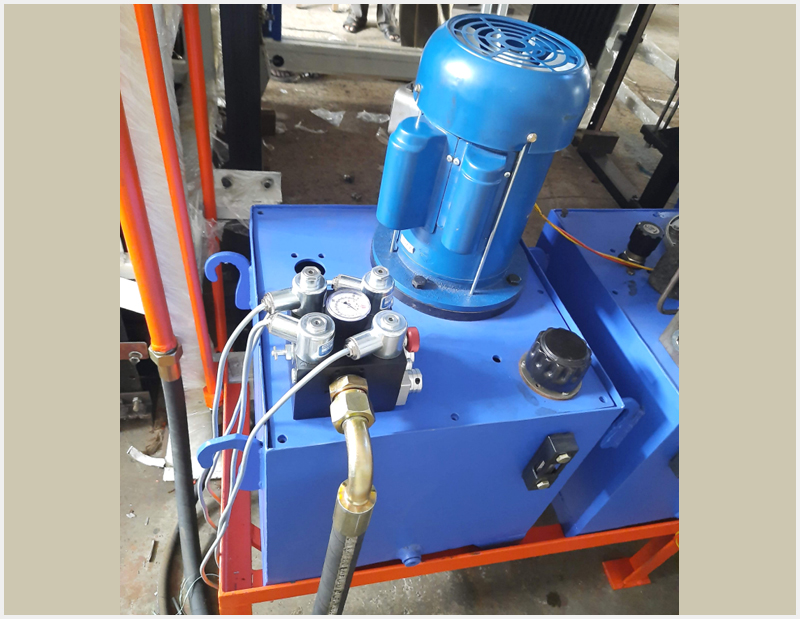

Hydraulic Power Pack Blain Valve

Hydraulic Power Pack Sonlet Valve

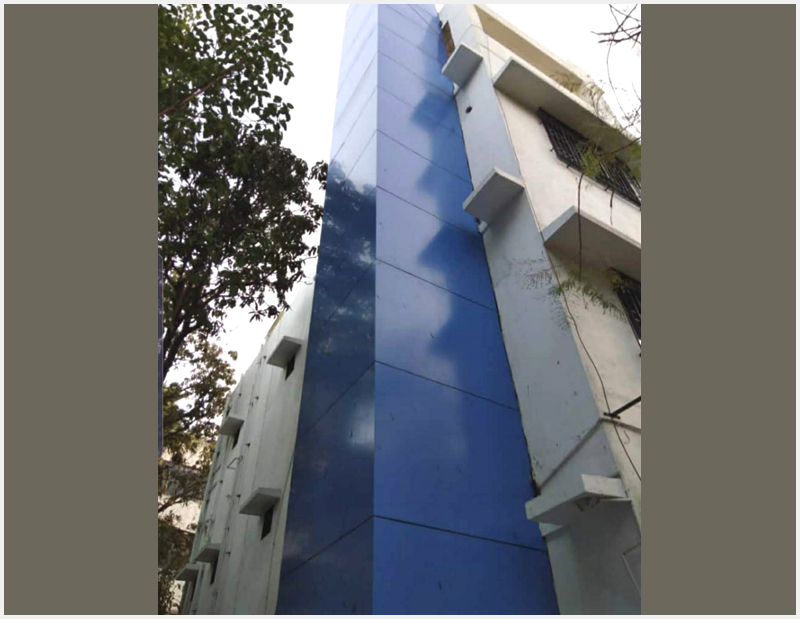

Lift Outside Covering

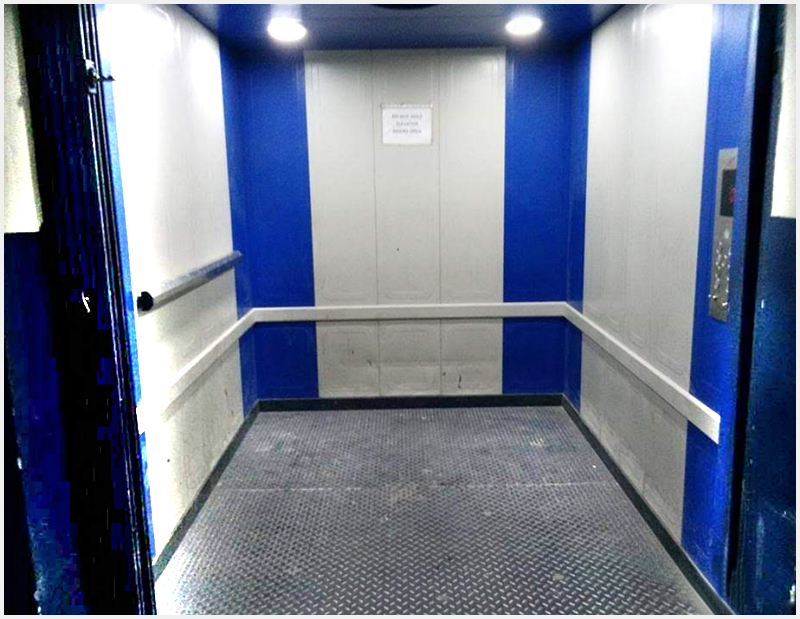

MS Powder Coated Cabin

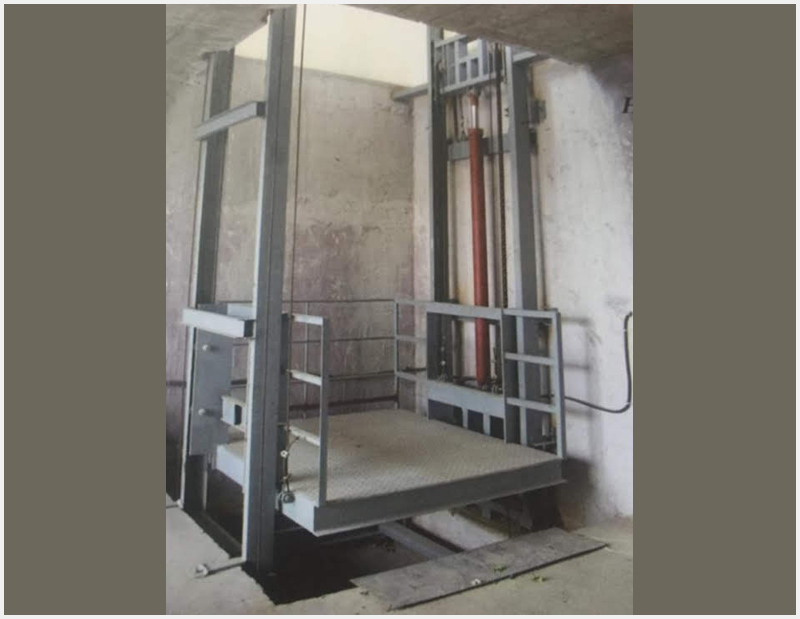

Hydraulic Goods Lift Railing Type Cabin

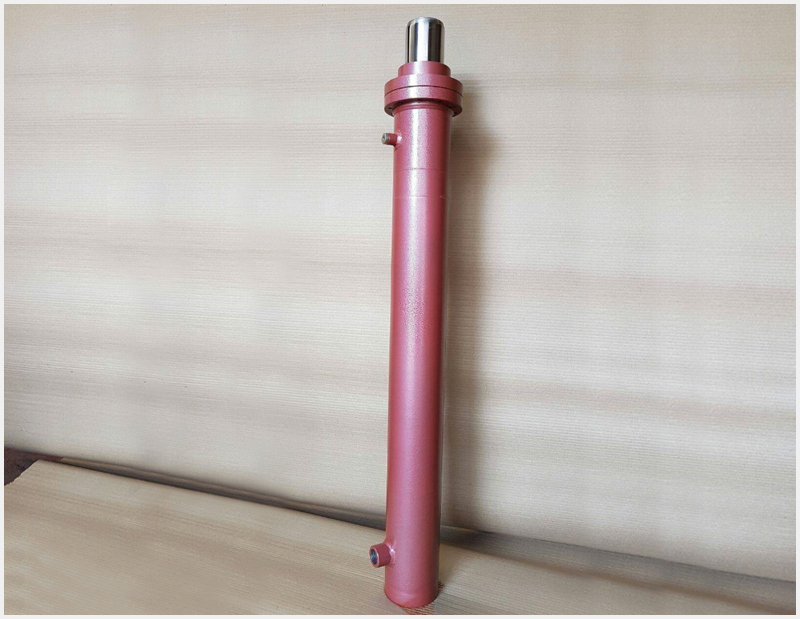

Hydraulic Cylinder

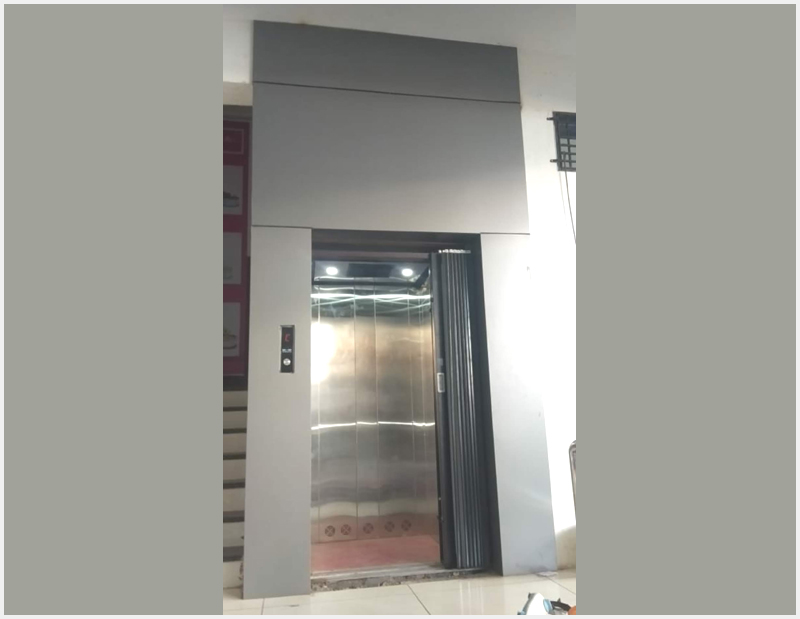

Hydraulic Passenger Lift

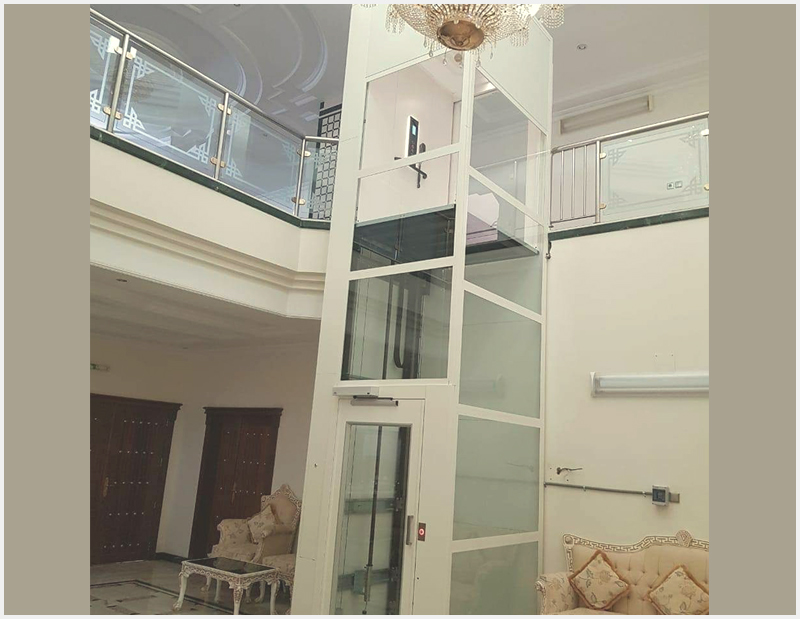

Hydraulic Home Lift

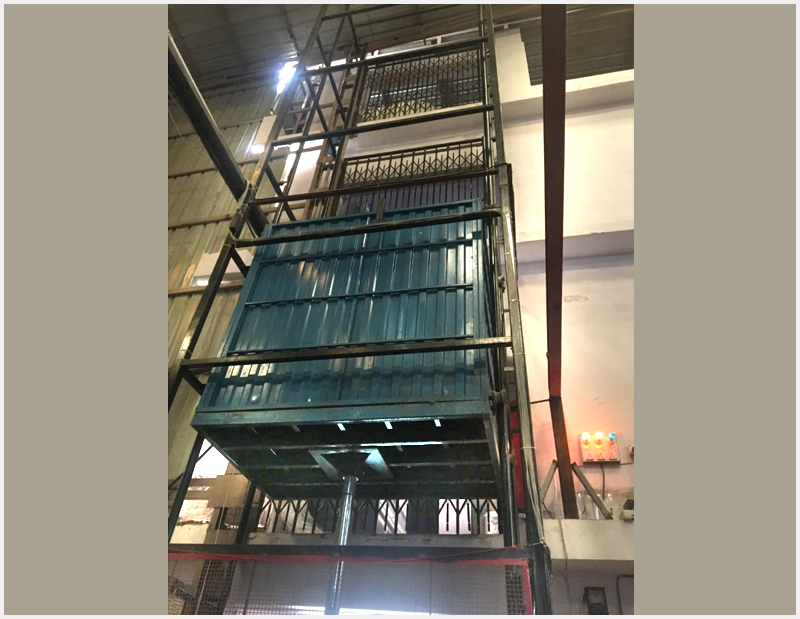

Hydraulic Center Cylinder Goods Lift

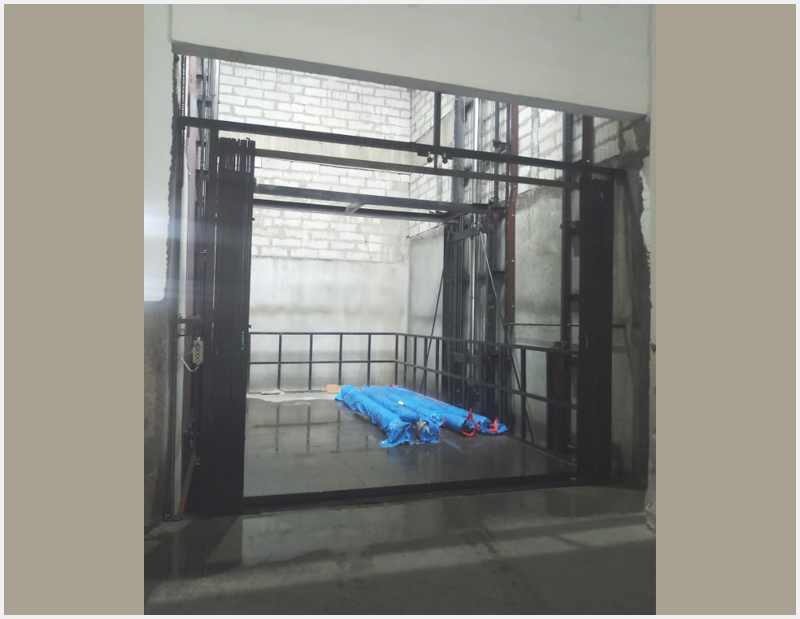

Hydraulic Heavy Goods Lift

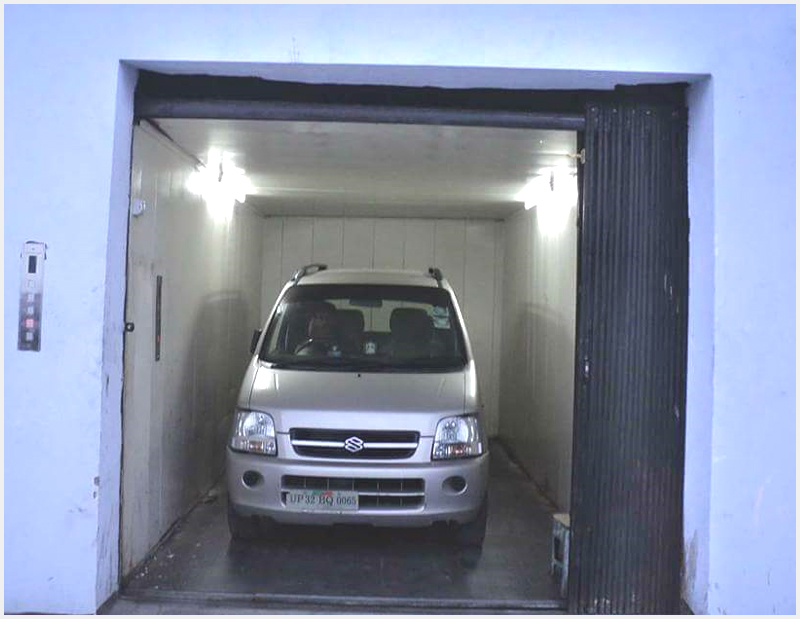

Hydraulic Car Lift
